Product Description:
Heavy Duty Pan Tilt Units – 80kg payload
• Maximum Load: 80 kg
• Weight: 32 kg
• Rotation: Horizontal 360° continuous; Tilt -45° to +45°
• Speed: Horizontal 0.01°–10°/s; Tilt 0.01°–5°/s
• Repeat Positioning Accuracy: ±0.1°
• Ingress Protection: IP66
• Auto Patrol: 2 routes, 40 presets per route
• Communication Protocol: PELCO-D
• Interface: RS422
• Operating Temperature: -25°C to +65°C
• Installation: Fixed
Technical Parameters:
|
Model
|
H–S080W-PT
|
|
Rotation Angle
|
Pan: 0° to 360° ; Tilt: -45° to +45°
|
|
Rotation Speed
|
Pan: 0.01 to 10°/s ; Tilt: 0.01 to 5°/s
|
|
Preset Positions
|
200
|
|
Positioning Accuracy
|
±0.1°
|
|
Power-On Self-Test
|
Support
|
|
Angle Feedback
|
Query-based / Real-time
|
|
Auto Cruise
|
2 patterns, 40 points each
|
|
Auto Home
|
Configurable (1～60 min)
|
|
Auto Scan
|
1 pattern
|
|
Salt Spray Resistance
|
No significant surface change after 48hrs continuous spray (PH 6.5-7.2).
|
|
Communication Protocol
|
PELCO_D
|
|
Baud Rate
|
9600bps(2400/4800/115200bps)
|
|
Communication Interface
|
RS422
|
|
Power Supply Voltage
|
DC48V
|
|
Power Consumption
|
≤200W (Operating)
|
|
Temperature
|
-40℃～+65℃(working),-25℃～+65℃(storage)
|
|
Payload
|
80 kg
|
|

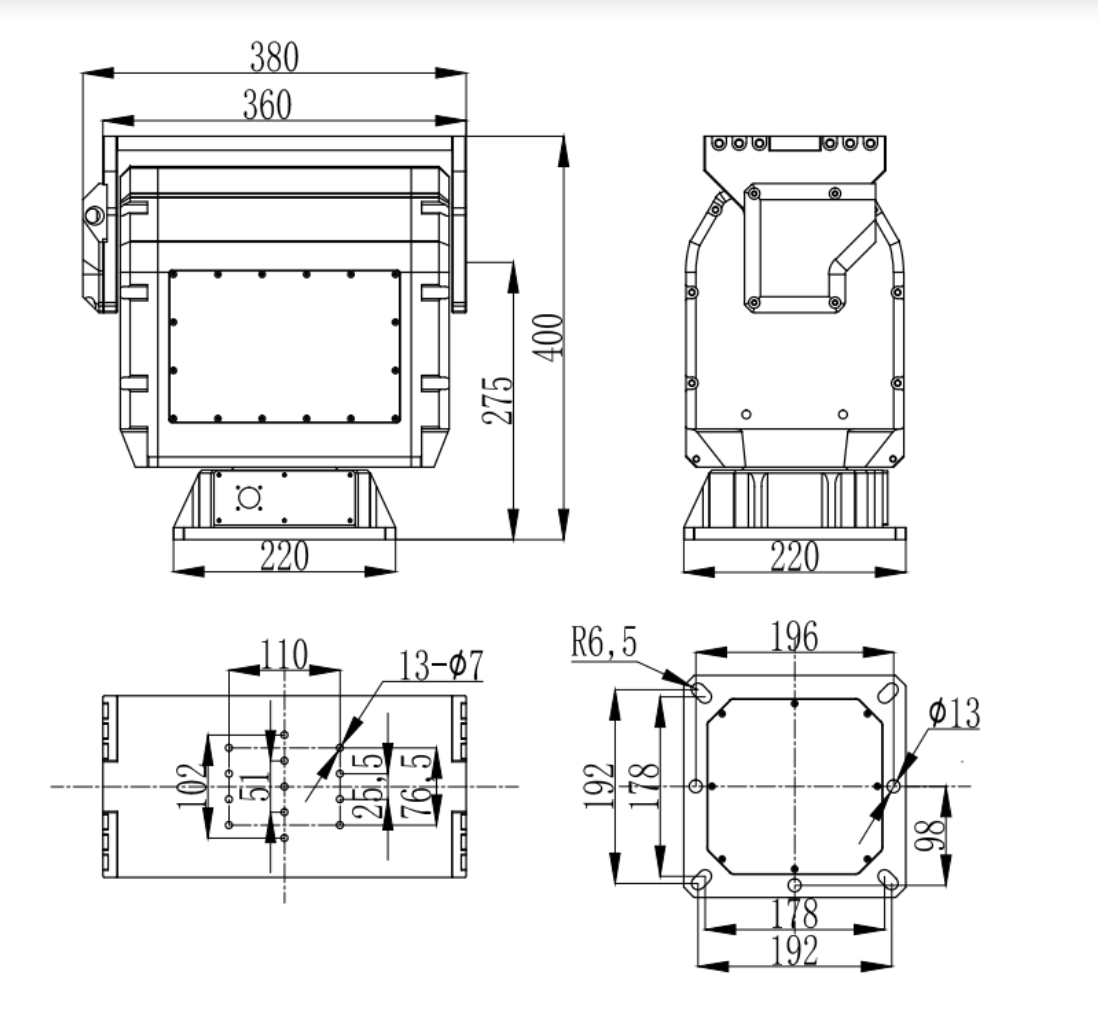

Dimensions (LWH)
|
380 x 220 x 400 mm
|
|
Weight
|
32kg
|
|
Mounting Type
|
Top Mount
|
|
Self-Locking
|
Support
|
|
Ingress Protection (IP)
|
IP66
|
|
Installation Environment
|
Fixed Installation
|
|
System Type
|
Open-Loop System (No Encoder)
|
|
Top Cable Pass-through
|
1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Output Power Cable (20A)
|
|
Bottom Cable Pass-through
|
1x Gigabit Ethernet Passthrough Signal Cable (8-core)
1x DC24V Input Power Cable (System Power)
1x RS422 (Unit Communication)
|
